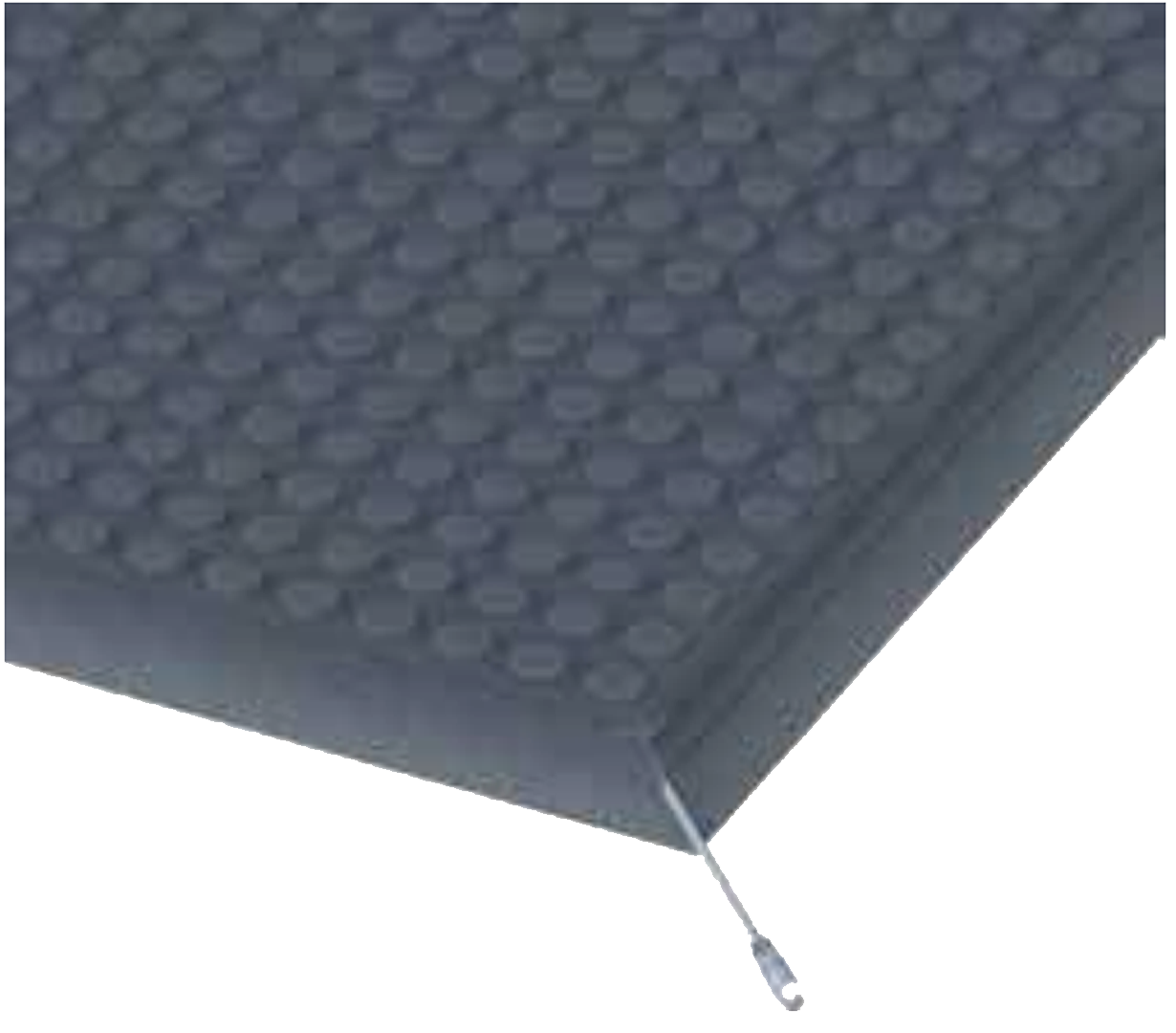

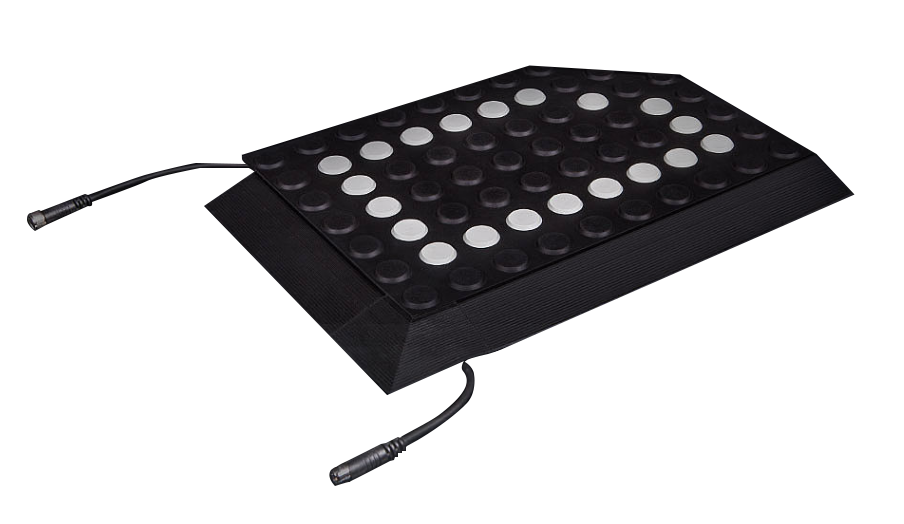

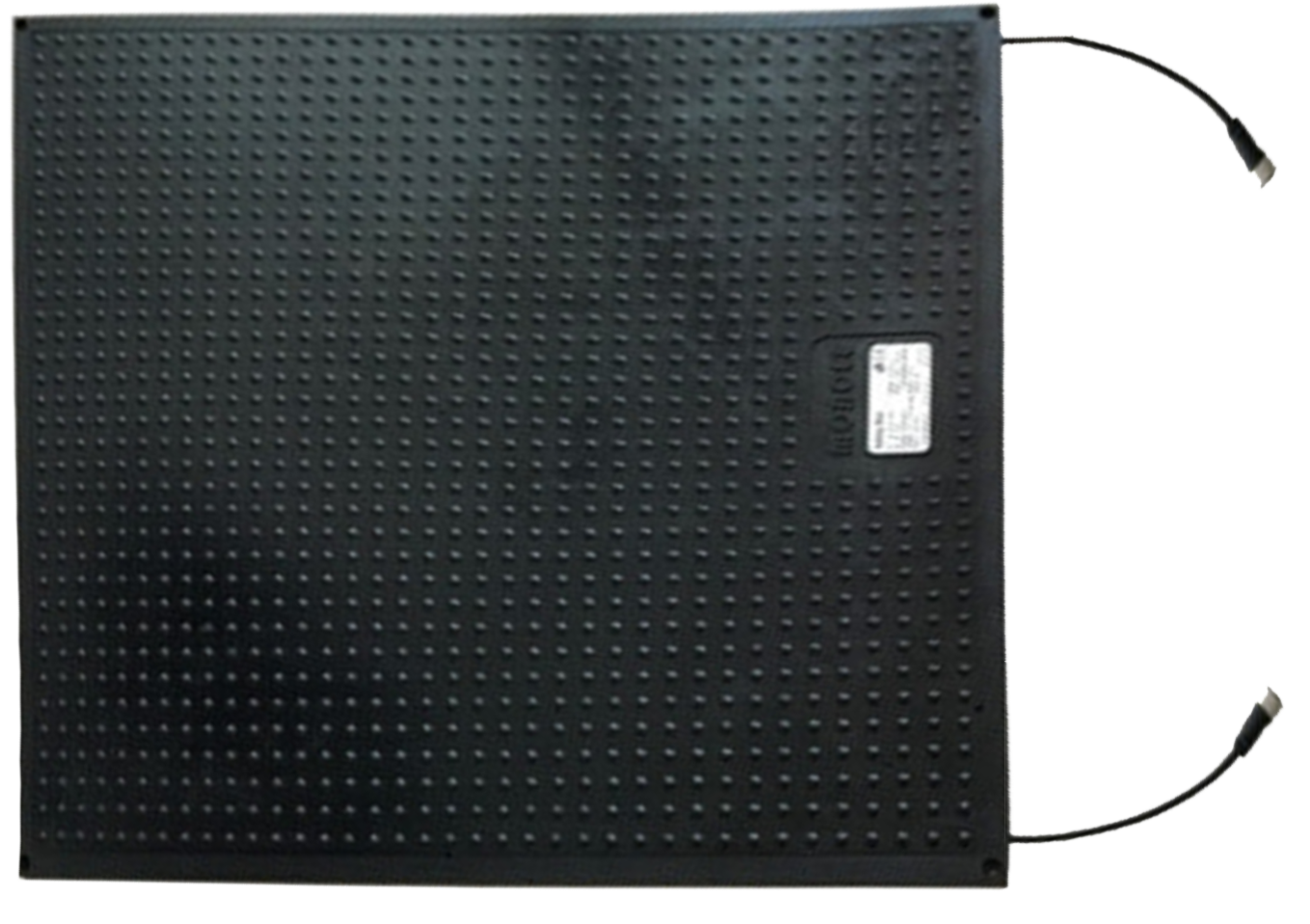

Pressure safety pad

·The pressure sensor is safely padded, and a human pressure trigger signal is sent to the protection products of the safety relay stop equipment.

·Various safety specifications and special shapes can be customized.

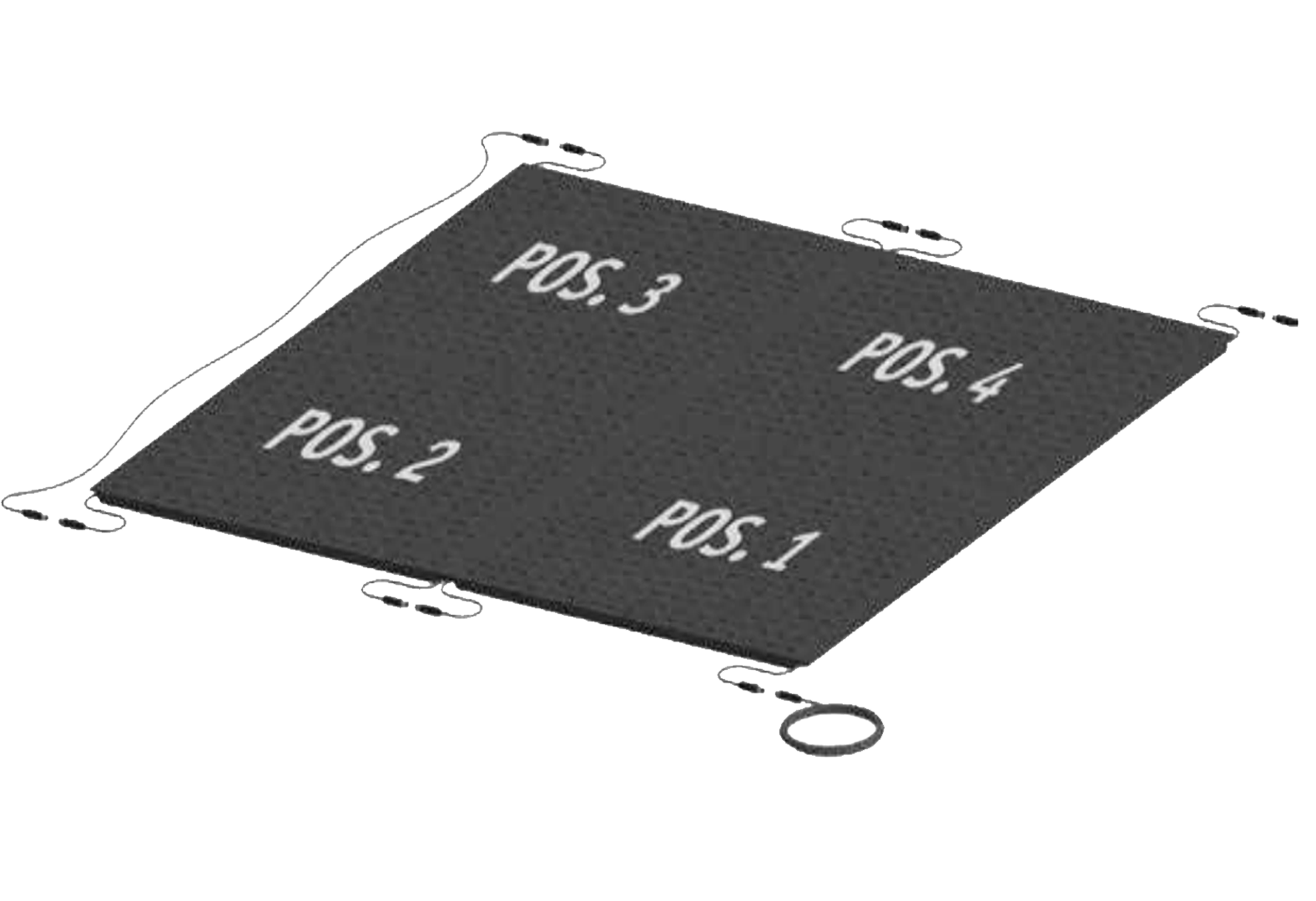

·Each mat provides four wires to the controller to provide redundant wires to monitor the normally open safety loop.

·It is more free than traditional safety product isolation.

·Safety mats can be used to monitor the whole dangerous area.

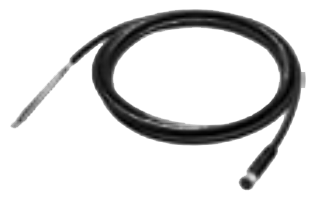

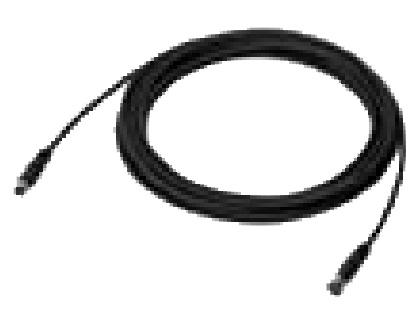

·Equipped with single cable type and double cable type safety pads which are easy to connect with multiple safety pads.

·Get the certification of EN ISO 13849-1(PLd/ safety category 3) EN ISO 13856-1.

·Build the safety loop of special safety cushion controller to achieve PLe.

·Mat type: normally open SPST, four-wire system

·Mode: pressure sensing

·Force: adult > 30kg.(66lb.)

·Combustibility of floor mat: self-extinguishing, meeting UL94VO.

·Floor mat surface material: PVC

·Operating temperature: -37 to 66℃(-35 to 150°F)

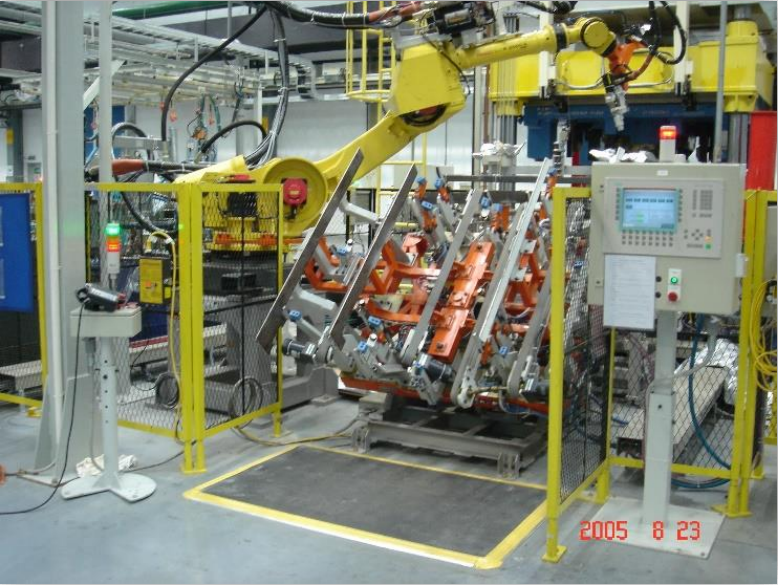

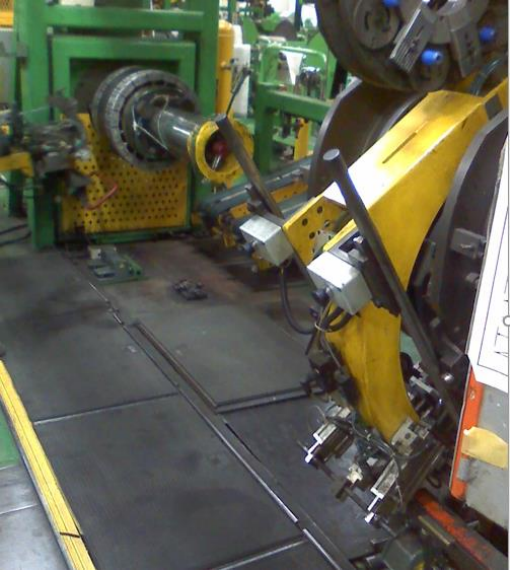

·Welding robot

·Assemble the machine

·Material handling

·Packaging machine

·Tire machine

·Punch press

·Printing

product name

·Power supply characteristics：

supply voltage：24V DC

voltage range：20～30V DC

Current loss：≤100mA(24V DC)

·Input characteristics：

incoming current：≤10mA(24V DC)

conductor resistance：≤15Ω

Input equipment: safety carpet, etc.

Note: Safety carpets should not be monitored by the same module as other types of input devices.

Input channel: 3

·output characteristic：

Number of contacts: 2NO (safety output)

Contact material: AgSn02

Contact fuse protection: 10A is fast, 6A is slow.

Switching capacity: 5A/230V AC；; 5A/24V DC

·Time characteristic：

Suction buffer time: ≤100ms

Release buffer time: ≤30ms

Recovery time:

Emergency stop operation: ≤30ms

Power failure: ≤1000ms

Short-term power interruption: 20ms

·control logic：

Control logic: 8 kinds of logic, and new logic can be customized according to customer requirements.

Delay setting time: 0s ~ 99s
