product line

LSJT2

product model

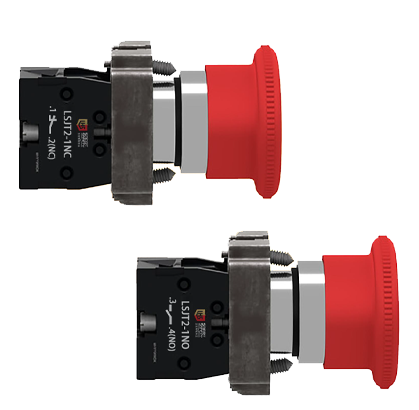

LSJT2-1NC

LSJT2-1NO

Mechanical and electrical parameters

product category

Panic Button

brief introduction

Products (non-parts)

Border material

Nickel plated metal

Retaining ring material

Zamak

Installation diameter

22.5 mm

Manipulator head type

Mushroom

Quantity sold separately for each piece

1

Mechanical and electrical parameters

Operation head type

Rotational reset

reset

Rotational reset

Joystick shape

Red mushroom head 40mm, unmarked.

ISOn°1 terminal

(11-12)NC

Operating head or lens color

red

Scope of application of products

ZB2..C

Contact type

1NC

Contact action

Slow break

Contact wire use

Standard contact

Forced opening

Contacts with NC conform to IEC60947-5-1 Appendix K.

Mechanical and electrical parameters

Operational communication

2.0 mm (NCChange the electrical state) 5.0 mm (Total travel)

mechanical life

300000 time

Wiring ability

bolt-on,<=2x1.5mm2withand without cable ends

bolt-on,<=1x2.5mm2withand without cable ends

bolt-on,>=1x0.5mm2withand without cable ends

Quick connection terminal, connection model: 6.3 mm

Tightening torque

0.8…1.0 N.m

Screw head shape

Cross compatibility Philipsno1 Screwdriver

Cross compatibility pozidrivNo1 Screwdriver

One-slot compatible flat?4mm Screwdriver

One-slot compatible flat?5.5mm Screwdriver

Contact material

Silver alloy (silver/nickel)

Short circuit protection

10A gL fuse type gG conforms to IEC 60947-5-1.

Agreed heating current [Ith]

10A conforms to IEC 60947-5-1.

Rated isolation voltage [Ui]

600V (pollution level 3) conforms to IEC 60947-1.

Rated impulse withstand voltage [Uimp]

6kV 符合 IEC 60947-1

Rated working current [Ie]

3A在…上240V,AC-15,A600符合IEC 60947-5-1

0.27A在…上250V,DC-13,Q600符合IEC60947-5-1

Electrical life

1,000,000 times, AC-15,3A at … 240V, working rating < 3,600 times/hour, load factor: 0.5, in accordance with IEC60947-5-1 Appendix C.

1,000,000 times, DC-13,0.27A at … 250V, working rating < 3,600 times/hour, load factor: 0.5 in accordance with IEC60947-5-1 Appendix C.

Electrical reliability

Λ< 10exp(-6)Comply with IEC 60947-5-4 in a clean environment of 5 V and 1 mA above.

Λ< 10exp(-8)Comply with IEC 60947-5-4 in a clean environment of 17 V and 5 mA.

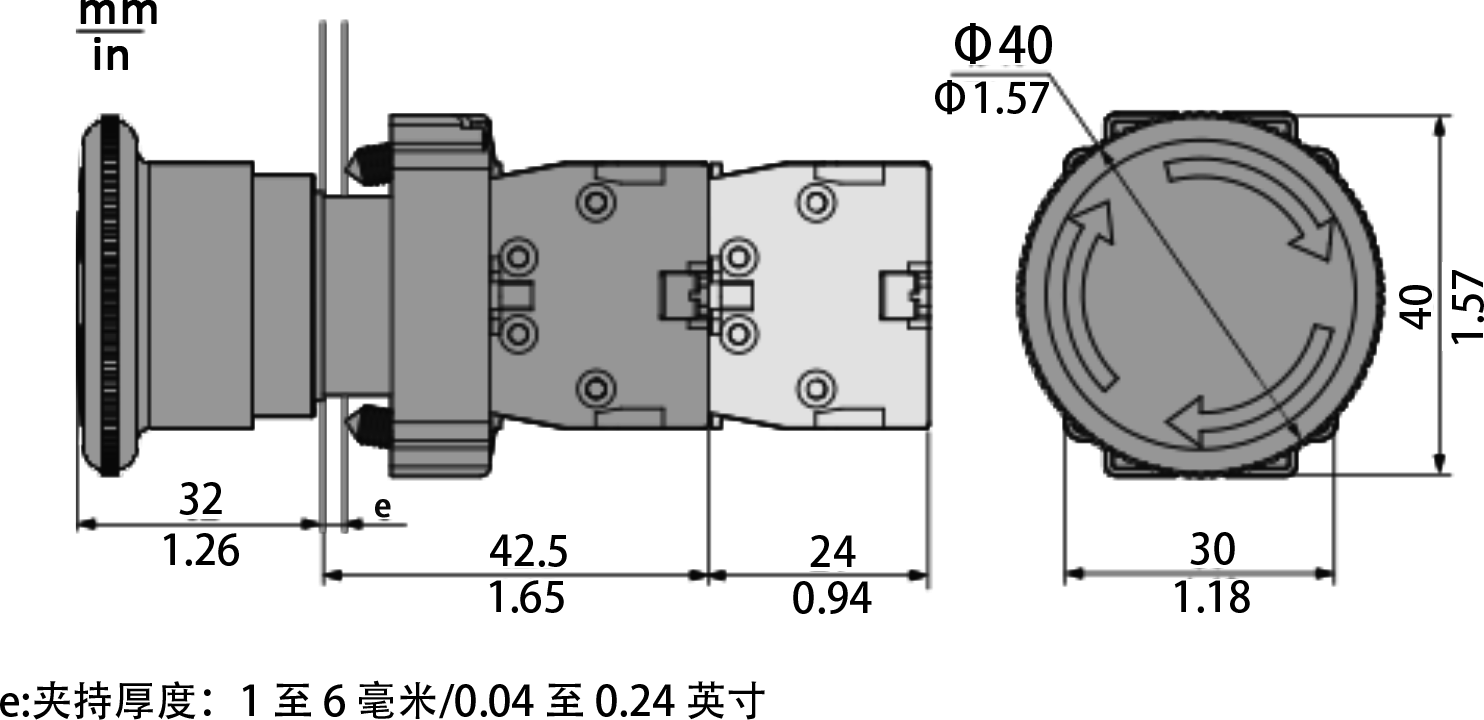

height

40 mm

width

40 mm

depth

74.5 mm

net weight

0.095 kg

Operator type

mechanical caging
